Centralized system for securing network infrastructure and creation of VPN-networks based on GOST algorithms
The allocation of administration mechanisms from protection devices to Network Control Center simplifies network operation, minimizes the risk of downtime due to errors, and makes it possible to commission new segments more rapidly.
Having a variety of functions and ranges of performance for modules and platforms within a single control loop helps make possible the efficient solution of diverse network security tasks.
SNMP support, centralized collection of debugging logs, and policy dumping to an XML file, all reduce network downtime risks in n-emergency situations and decrease resolution time.
In-house designed appliances have balanced performance characteristics and 10 Gbit/s NICs. Localized assembly ensures high trust level.
Backup of network control centers
Security node clustering
Fault tolerance on the level of network interfaces (LACP) and communication channels
Crypto-accelerator with performance of up to 20 Gbps and traffic processing delays of around 50 mcs
VLAN ‘stretching’ between two data centers
Support Multiple Entry Point
Group operations over security nodes
Centralized local user managements
Log export into SIEM via syslog
VoIP-telephony protection
Protection of videoconferencing systems
The Continent 3 model portfolio allows the selection of solutions which aid communication with remote divisions, branches or partners via channels of various bandwidth.
Choose the hardware design most suitable to the needs of your organization.

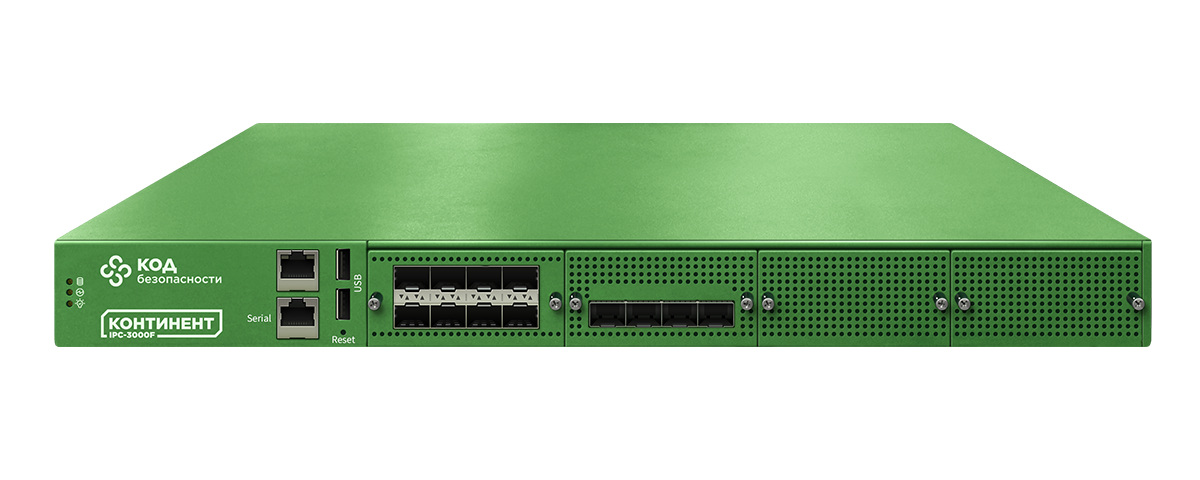

| Form factor: | 1U |
| Network interfaces: | 1х 1000BASE-T RJ45 8х 1G SFP 4x 10G SFP+ |
| Managed Continent 3 devices: | up to 900 up to 500 (VPN Full Mesh) |
| Connected Continent AP users: | up to 3 000 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 7 000 Mbps |
| Firewall | up to 15 000 Mbps |
| Attack detector | up to 960 Mbps |
Modifications:
* Can work in High-availability cluster configuration
| Form factor: | 1U |
| Network interfaces: | 9х 1000BASE-T RJ45 8x 10G SFP+ |
| Managed Continent 3 devices: | up to 900 up to 500 (VPN Full Mesh) |
| Connected Continent AP users: | up to 3 000 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 7 000 Mbps |
| Firewall | up to 15 000 Mbps |
| Attack detector | up to 960 Mbps |
Modifications:
* Can work in High-availability cluster configuration
| Form factor: | 1U |
| Network interfaces: | 8x 10/100/1000BASE-T RJ45 4x 10G SFP+ |
| Managed Continent 3 devices: | up to 850 up to 300 (VPN Full Mesh) |
| Connected Continent AP users: | up to 1 200 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 5 000 Mbps |
| Firewall | up to 15 000 Mbps |
| Attack detector | up to 950 Mbps |
| Form factor: | 1U |
| Network interfaces: | 8х 1000BASE-T RJ45 8x 10G SFP+ |
| Managed Continent 3 devices: | up to 900 up to 500 (VPN Full Mesh) |
| Connected Continent AP users: | up to 2 500 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 8 000 Mbps |
| Firewall | up to 25 000 Mbps |
| Attack detector | up to 1 000 Mbps |
| Form factor: | Desktop with mounting kit for 1U racks |
| Network interfaces: | 4x 1000BASE-T RJ45 2x Combo SFP/RJ45 2x 10G SFP+ |
| Managed Continent 3 devices: | up to 200 up to 70 (VPN Full Mesh) |
| Connected Continent AP users: | up to 100 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 500 Mbps |
| Firewall | up to 4 000 Mbps |
| Attack detector | up to 400 Mbps |
Modifications (from Continent 3.9.1 and later):
* Can work in High-availability cluster configuration
| Form factor: | Desktop with mounting kit for 1U racks |
| Network interfaces: | 4x 1000BASE-T RJ45 2x Combo SFP/RJ45 2x 10G SFP+ |
| Managed Continent 3 devices: | up to 200 up to 70 (VPN Full Mesh) |
| Connected Continent AP users: | up to 150 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 1 000 Mbps |
| Firewall | up to 7 000 Mbps |
| Attack detector | up to 500 Mbps |
Modifications (from Continent 3.9.1 and later):
* Can work in High-availability cluster configuration
| Form factor: | Desktop with mounting kit for 1U racks |
| Network interfaces: | 8x 1000BASE-T RJ45 4x 10G SFP+ |
| Managed Continent 3 devices: | up to 350 up to 200 (VPN Full Mesh) |
| Connected Continent AP users: | up to 500 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 2 500 Mbps |
| Firewall | up to 12 000 Mbps |
| Attack detector | up to 850 Mbps |
| Form factor: | Mini-ITX |
| Network interfaces: | 3х 1000BASE-T RJ45 |
| Managed Continent 3 devices: | up to 5 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 120 Mbps |
| Firewall | up to 300 Mbps |
Modifications:
| Form factor: | Desktop with mounting kit for 1U racks |
| Network interfaces: | 4х 1000BASE-T RJ45 1x 1G SFP |
| Managed Continent 3 devices: | up to 5 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 140 Mbps |
| Firewall | up to 1 000 Mbps |
Modifications:
| Form factor: | Desktop with mounting kit for 1U racks |
| Network interfaces: | 4х 1000BASE-T RJ45 1x 1G SFP |
| Managed Continent 3 devices: | up to 70 up to 20 (VPN Full Mesh) |
| Connected Continent AP users: | up to 50 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 350 Mbps |
| Firewall performance | up to 1 200 Mbps |
| IDS performance | up to 200 Mbps |
Modifications:
* Can work in High-availability cluster configuration
| Form factor: | Mini-ITX |
| Network interfaces: | 4x 1000BASE-T RJ45 1x 1G SFP |
| Managed Continent 3 devices: | up to 20 |
| Connected Continent AP users: | up to 25 |
Performance of the device:
| Operation mode | Performance |
|---|---|
| L3 и L2 VPN | up to 300 Mbps |
| Firewall performance | up to 950 Mbps |
| IDS performance | up to 50 Mbps |
Please note that the vendor reserves the right to make changes to the configuration of hardware platforms without special notice and that this does not violate the developer’s obligations to the user.
Speed of data transfer is measured using a proprietary method which we are happy to disclose upon request.
Information contained in these documents may be changed by the developer without special notice; such changes do not violate the developer’s obligations to the user.
